Bisly Server CX00
Central building supervision and coordination. Local logic and schedules; trend and meter collection.
BISLY WIRED TECHNOLOGY
Purpose-Built Hardware. Complete Building Control.
Bisly wired technology brings controllers, I/O modules, room devices, lighting, metering, and integration gateways into one coordinated building automation system. Its complete hardware and software stack combines sophisticated control with established industrial interfaces and efficient deployment workflows.
Engineered Together. Configured for Your Building.
One Architecture. Every Layer of the Building.
Central supervision coordinates the building; distributed controllers operate equipment locally. Ethernet links the automation LAN, while RS-485 field buses and dedicated gateways connect room devices, I/O, lighting, meters, and third-party plant. The layers below show functional roles; devices attach to their supported network or field bus.
- Outbound HTTPS / secure cloud connectivity
Management
Bisly BMS and cloud services · Installer App · resident interfaces
- Automation Ethernet LAN / device-specific field buses
Building Infrastructure
Server CX00 · Mini Server CX01 · router · Ethernet LAN · PoE switches
- Modbus RTU/TCP · DALI-2 · M-Bus · analog/digital I/O
Automation & Control
Controller CU08 and I/O: RS-485 · Room Controller RC04: field bus · DALI Bridge LD02: Ethernet → DALI-2 · integration gateways
Building Equipment
AHUs and ventilation · heating and cooling · pumps and valves · lights · sensors · access · meters

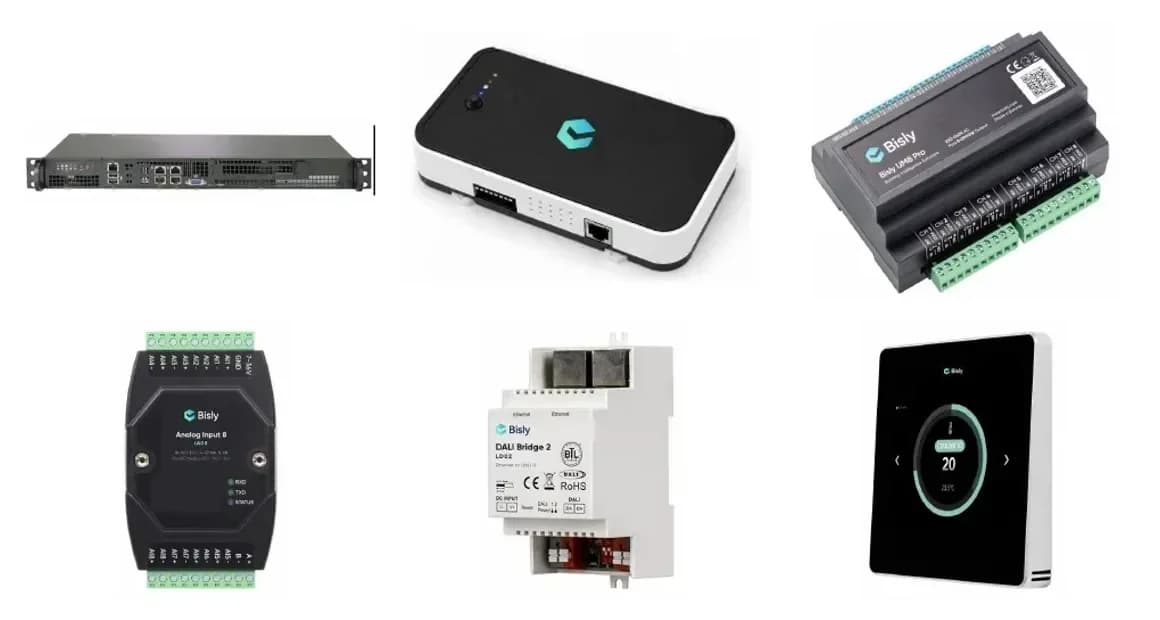

Engineered for Every Control Layer.
Servers & Controllers
Bisly Mini Server CX01
Autonomous plant-room and subsystem control. RS-485 Modbus RTU; expandable I/O and DIN-rail mounting.
Bisly Controller 8 CU08
Floor and equipment automation. 8 relay outputs; Ethernet and 3 RS-485 interfaces.
I/O & Integration
Analog Input 8 IA08
Sensor acquisition for plant and floor control. 8 analog inputs; configurable 0–10 V, 0–20 mA or 4–20 mA.
Analog Output 8 IQ08
Valve, damper, and drive control. 8 analog outputs; 0–10 V signals.

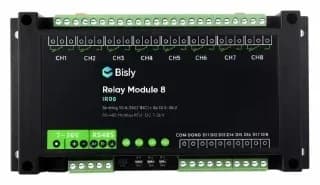

Relay Module 8 IR08
Equipment switching and status monitoring. 8 relays; 8 isolated digital inputs.
Room & Lighting Control
DALI Bridge 2 LD02
Addressable lighting automation. DALI-2; one line with up to 64 control gears.
Room Controller 4 RC04
Room-level sensing and comfort control. Integrated temperature/humidity sensing; touch interface and universal I/O.
Datasheets on request.
Proven Industrial Standards. Connected Building Systems.
Decades of Industry Experience. Built into Modern Building Automation. Modbus and BACnet are established building-control technologies. Bisly uses supported interfaces and gateways to connect existing infrastructure to its proprietary platform.
| Modbus RTU / TCP | HVAC equipment, plant controllers, meters, and industrial devices. |
|---|---|
| BACnet/IP | Supervisory interoperability: confirm the interface and data exchange scope during project design. |
| DALI-2 | Addressable lighting, scenes, dimming, presence, and daylight sensing. |
| M-Bus | Heat, water, gas, and electricity metering. |
| KNX integration | Existing KNX installations connect through KNX/IP gateways. |
Building Services
OSDP
Access-control readers.
SIP
IP intercoms and door stations.
ONVIF / RTSP
Camera integration and live video.
REST API
External software connectivity through role-based access tokens.
Conventional Professional Infrastructure
- DIN-rail mounting
- Ethernet
- RS-485
- Standard network cabling
- PoE
- Industrial analog and digital I/O
- Conventional control cabinets
Configured Before Installation. Ready for the Real Building.
Bisly’s digital-twin environment brings system design, device configuration, control logic, and commissioning into one coordinated process. Configure the building once and use the same digital model throughout installation and operation.
Digital Twin
Build the digital twin with rooms, equipment, and system relationships.
Preconfiguration
Generate device configurations and control logic through visual configuration.
Scan-to-Connect
Match preconfigured devices to the digital twin by scanning their QR codes in the Installer App.
Verification
Use automated verification results and consistent handover documentation in ongoing building management.
Designed for Continuous Building Operations.
Local automation
Controllers and servers execute local logic, schedules, and equipment control without continuous internet availability.
Dedicated networking
A dedicated automation LAN separates building controls from tenant and office IT.
Monitored and maintained
Device monitoring, secure remote access, and firmware updates support ongoing operation.
Bring Your Building into One Coordinated Platform.
IBIS is Bisly’s exclusive U.S. distributor, supporting system design, partner enablement, product supply, and project coordination. Qualified U.S. contractors and system integrators perform installation and commissioning with IBIS support.
Wired Where It Makes Sense. Wireless Where It Adds Value.
Combine wired plant infrastructure with Aurora wireless rooms and sensors. Both technologies share the Bisly BMS, digital twin, schedules, alarms, and operating environment.
